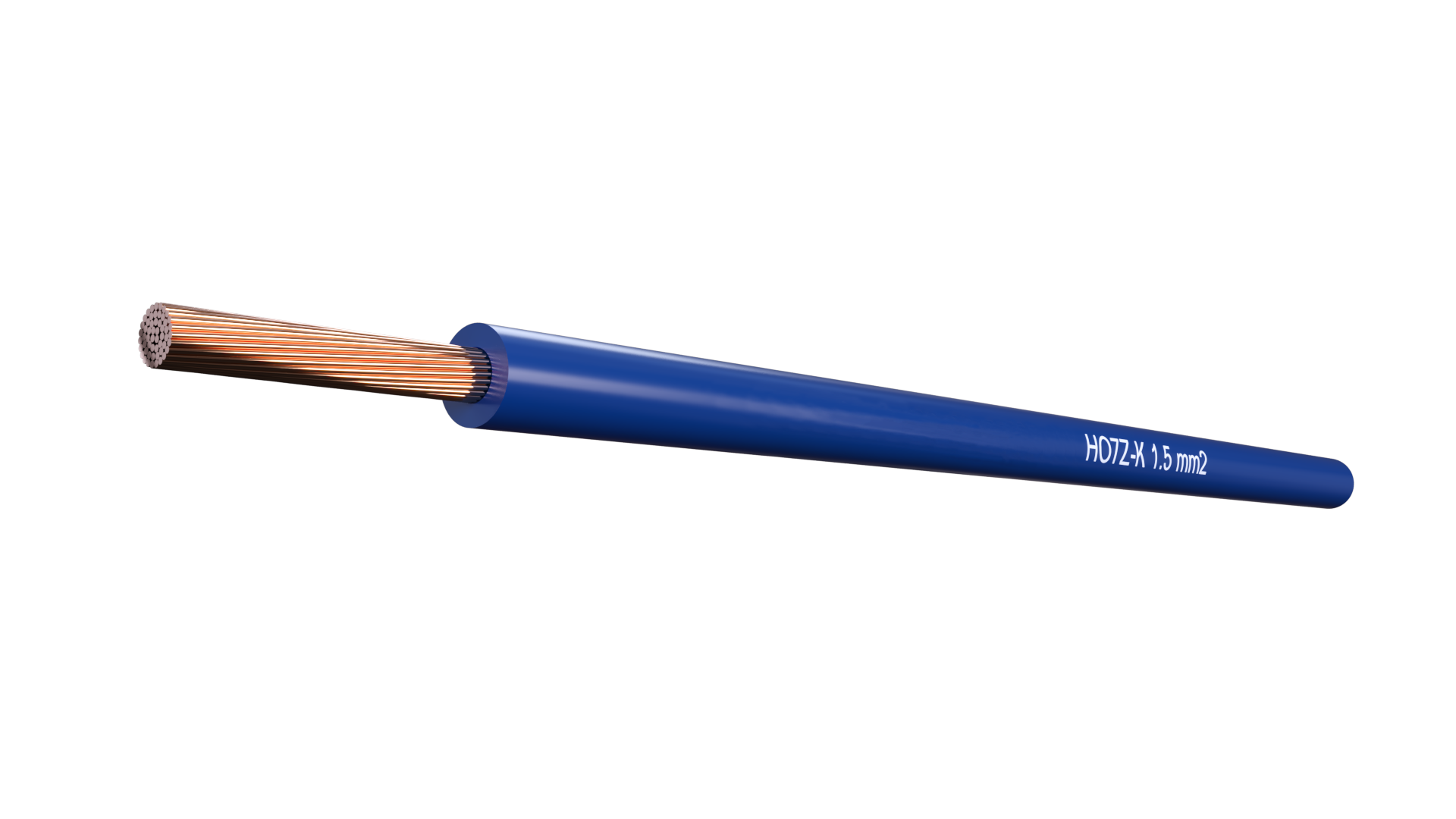

H07Z1-K 450/750V - Halogen Free Insulated Single Core Wire
Application:
For the installation in electrical conduit on or under plaster or in similar closed systems especially for applications where there is a requirement for low smoke and corrosive gas creation in the event of fire, however not outside
Construction:
Conductor - Fine-stranded bare copper
Insulation - Halogen-free Flame Retardant (HFFR)
Standards:
EN 50525-3-31
DIN EN 60228 Class 5 (construction)
Electrical Performance:
Nominal voltage: Uo/U [V] 450/750 Volt
Short circuit time: max. [sec] 5
Cross section: From 1.5 mm2 up to 240 mm2
Temperature range:
Maximum short circuit temperature: +160°C
Flammability:
Fire classification CPR class - EN 50575 - Dca
