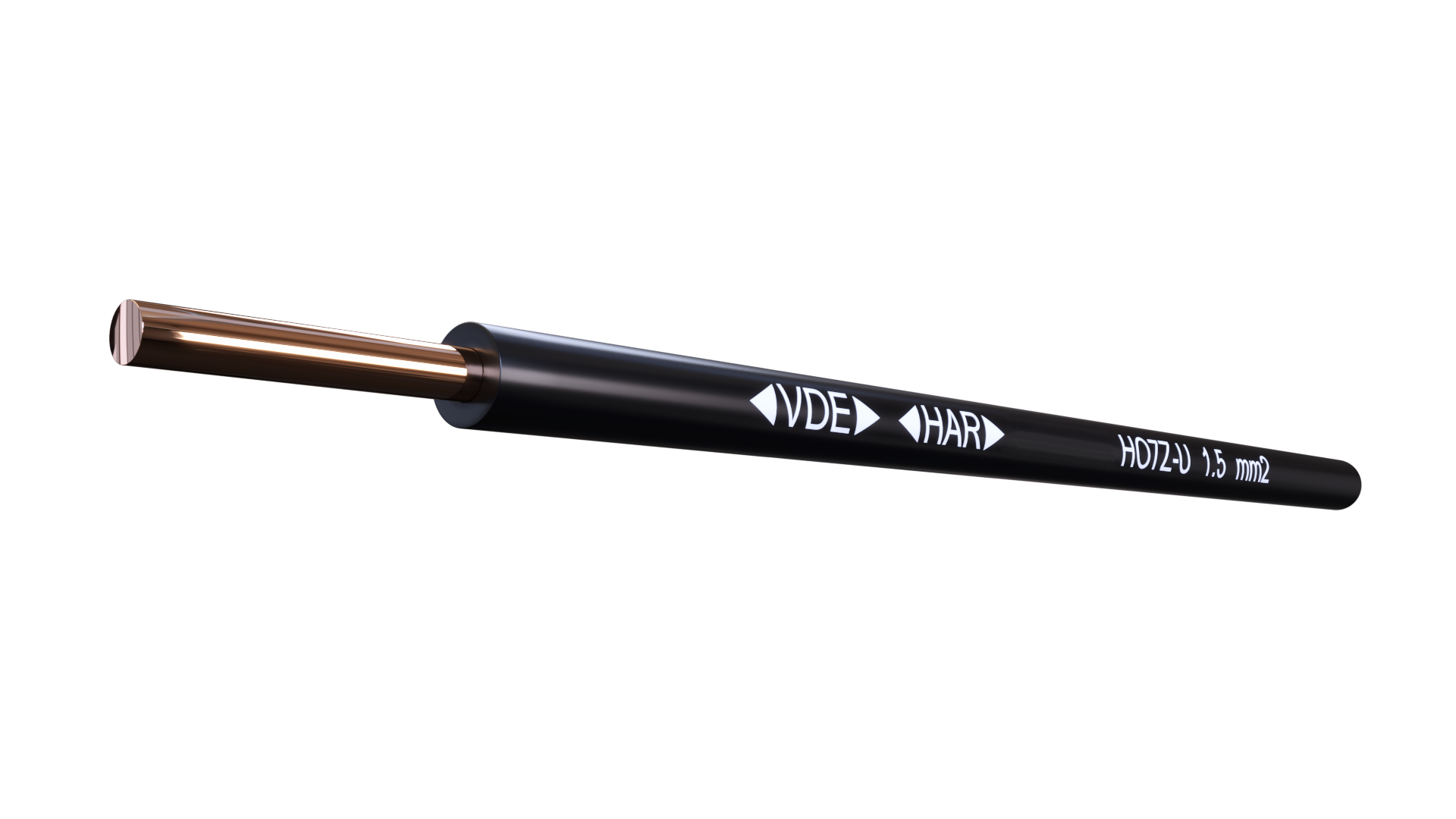

H07Z1-U 450/750V - Halogen-Free Insulated Single Core Wire
Application:
For the internal wiring of switching systems, equipment and lights as well as for domestic installations, however, not for outdoor use
Construction:
Conductor - Solid bare copper
Insulation - Halogen-free Flame Retardant (HFFR)
Standards:
Electrical performance:
Nominal Voltage: 450/750 Volt
Short circuit time: max. [sec] 5
Cross section: From 1.5 mm2 up to 16 mm2
Temperature range:
Maximum short circuit temperature: +160 °C
Flammability:
