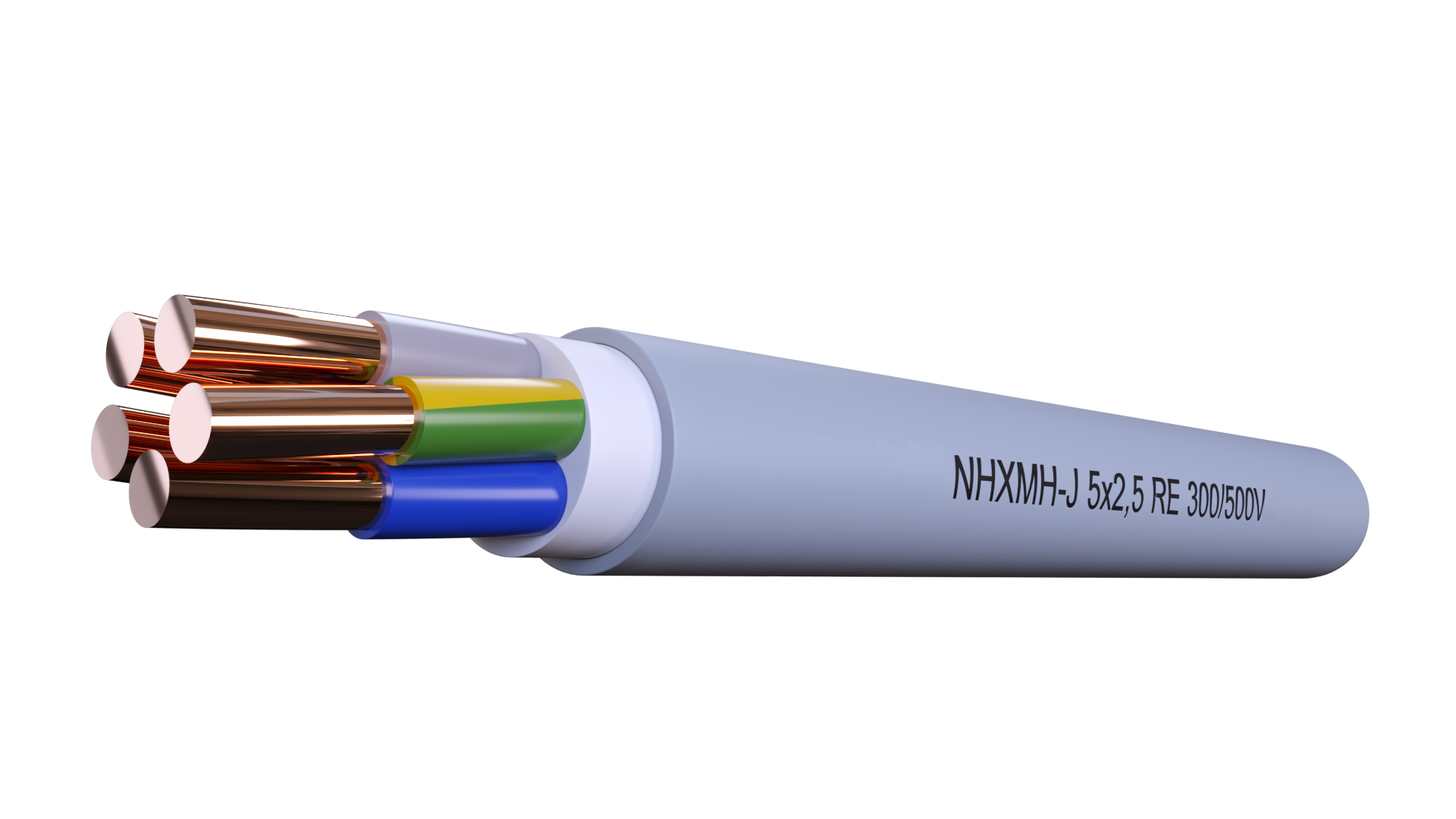

NHXMH - Halogen-Free Sheathed Wire with Improved Fire Behaviour
Application:
Halogen-free cable for installations, with improved fire behavior, laying on, in and under plaster, in masonry, reinforced concrete, dry, humid and wet locations
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Core insulation 2XI1
Filling - Core covering of a halogen-free filling compound
Outher sheath - Halogen free HM2, grey or special colours
Standards:
DIN VDE 0250-214
DIN EN 60228 Cl.1(RE) and cl.2(RM) (construction)
This cable is VDE certified
JZ: One core green/yellow, other cores are black with figures
OZ: Every core is black with figures
Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 4
Temperature range:
In motion °C +5°C till +70°C
Fixed °C -40°C till +70°C
Operating temperature short circuit °C 160°C
Flammability:
Reaction to fire - EN 60332-1-2 - Eca
